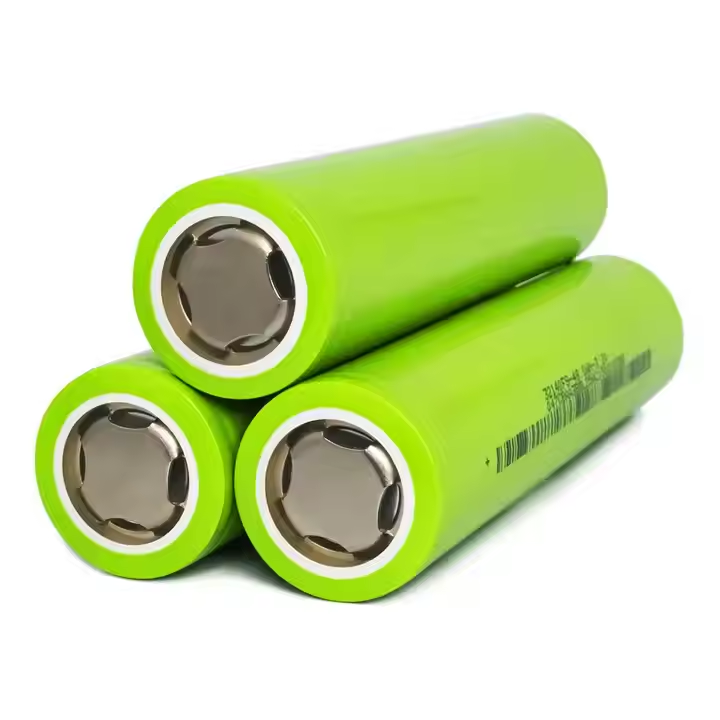

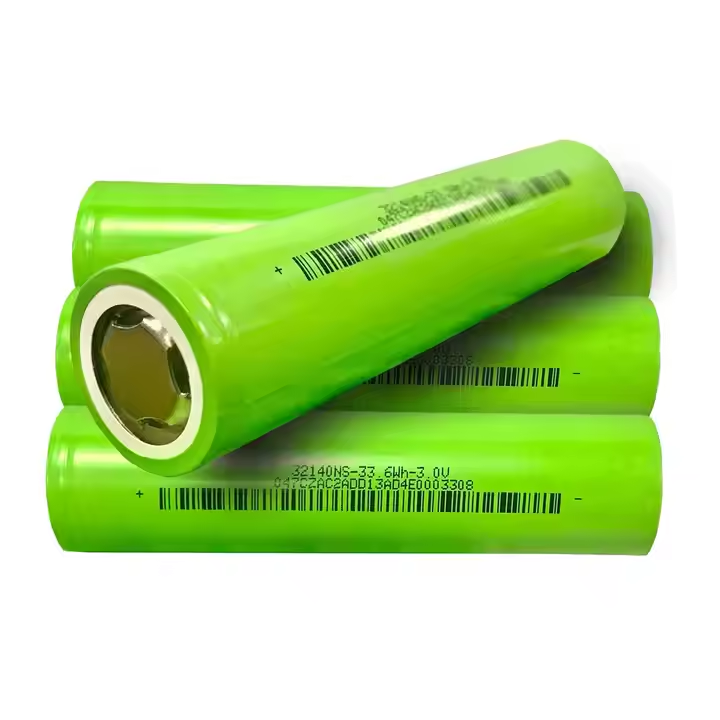

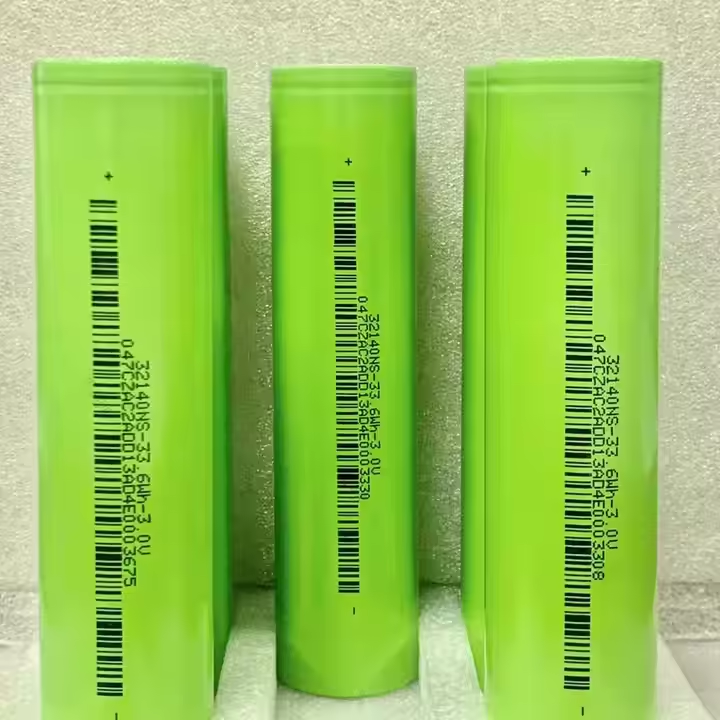

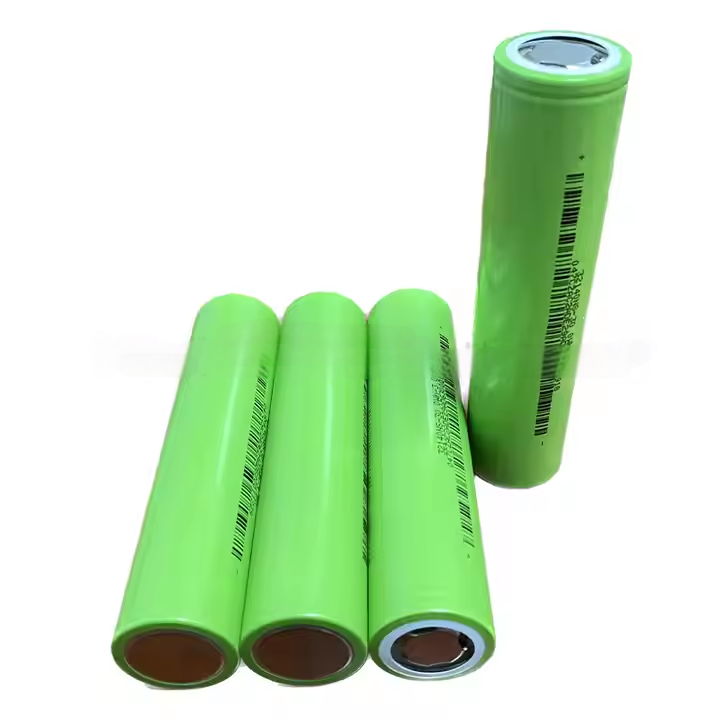

32140 Sodium Ion Battery Cell 3.0V 10Ah Cylindrical Cell Energy Storage Electric Vehicle

Key parameters

Typical capacity: 10Ah

Nominal voltage :3.2V

Cathode material: Sodium Ion

Ac internal resistance: 1.0mΩ≤IR≤4.0mΩ

Charging cut-off voltage: 3.95V

Discharge cut-off voltage: 1.5V(≥0℃)

Maximum continuous discharge current: 3C

Maximum continuous charging current: 1C

Maximum pulse discharge current: 10C (10s)

Continuous charging rate: 0.5C

Cycle: ≥2000 cycles

Charging temperature: -10-60℃

Discharge temperature: -40 to 60℃

Dimensions: Diameter 33.2±0.2mm, height 140.0±0.3mm

Usage scenarios

Energy Storage

Electric Car

Packing and shipping

Packing

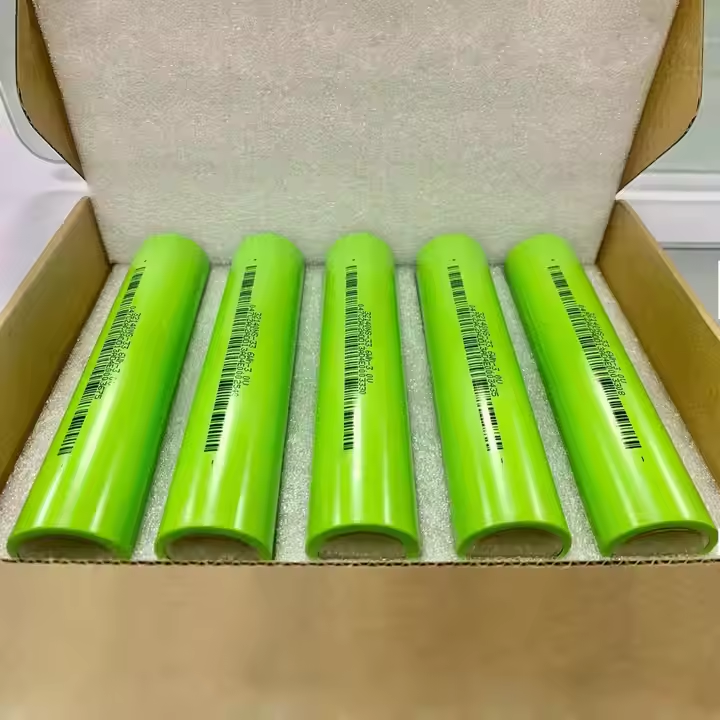

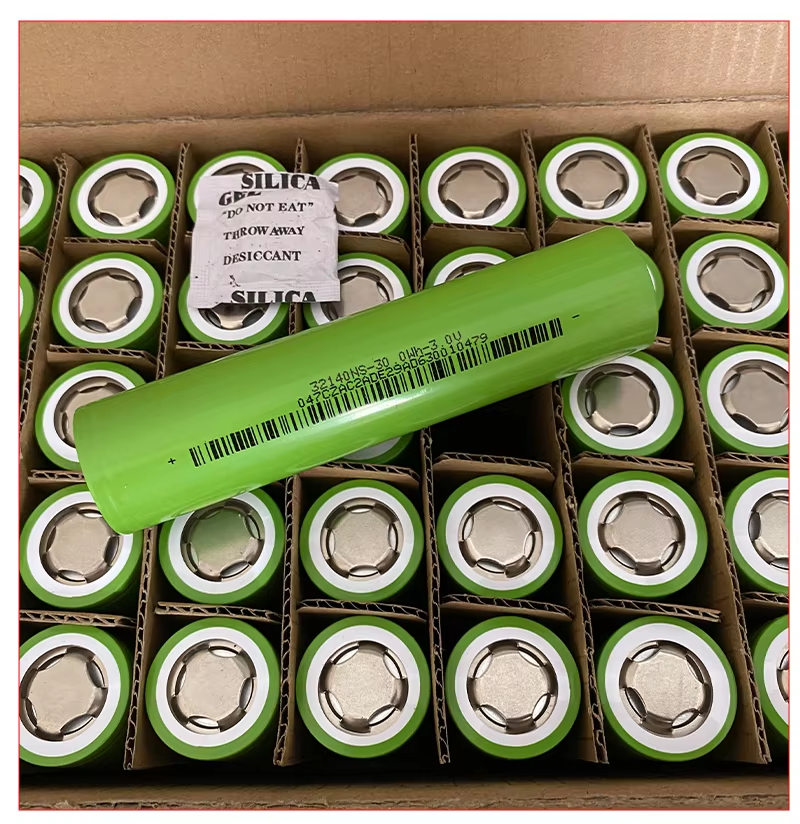

Each cell placed in an insulating sleeve, plastic tray, or blister

Desiccant included for sea or long-distance transport

Fixed orientation to prevent movement or terminal contact

Adequate spacing between cells to avoid friction and pressure damage

Outer Packing :Strong corrugated cartons or plywood cases

Palletized packing for bulk shipments

Transportation Modes

Air Transport

No lithium battery labels required

Standard air cargo packaging rules apply

Sea Transport

Suitable for bulk and heavy shipments

Moisture-proof inner packaging required

Container ventilation recommended

Land Transport

Minimal regulatory restrictions

Standard handling and stacking precautions apply
