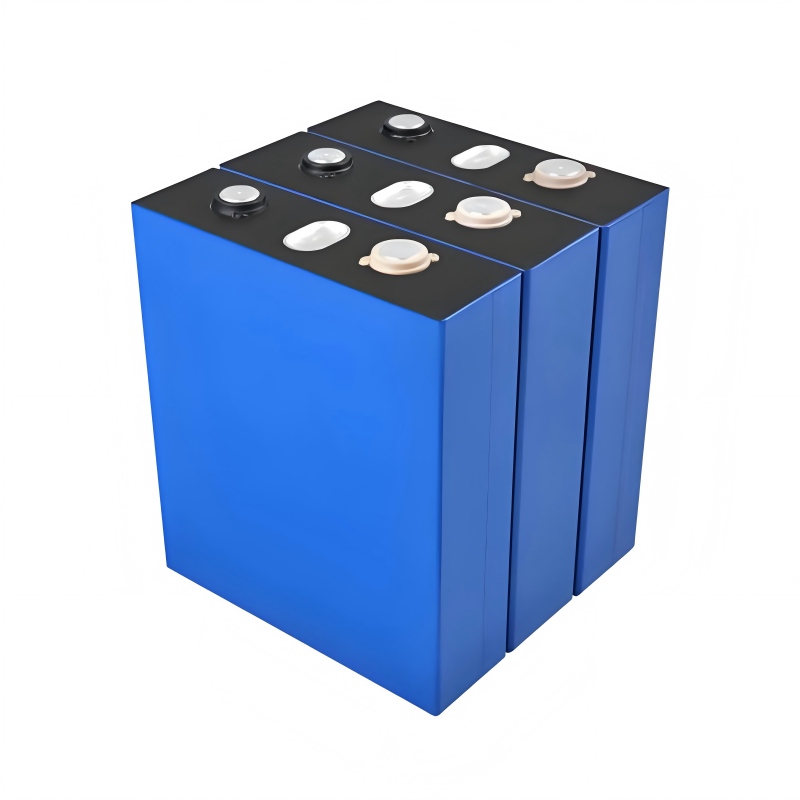

LiFePO4 Prismatic Battery Cell

LFP 3.2V 100Ah Lithium iron phosphate Battery Cell Micro New Energy Vehicle

Technical Specifications

Nominal Voltage:3.2V

Nominal Capcity:100Ah

Charge Cut-off Voltage:3.65V

Discharge Cut-off Voltage:2.5V(>0℃)、2.0V(≤0℃)

Nominal Energy:320Wh

Standard Charge / Discharge Current:50A /50A

Cycle Life:>3000/4000/6000(0.5C/0.5C)

Dimensions:40.2*221.1*112.4mm

Safety Standard:UL,UN, IEC, GB/T

Product Features

Super Long Cycle Life

High Energy Density

Low-Cost

High Safety Performance

Environmentally Friendly

Light Weight & Compact Size

Stable Discharge Voltage

Usage scenarios

Household Energy Storage

Communication Base Stations

Micro New Energy Vehicle

Packaging of Prismatic Battery

Purpose: Prevent short circuits, deformation, and contamination

Terminal insulation:

Positive and negative terminals covered with insulating caps or tapes

Busbars and bolts packed separately when required

Cell separation:

Each prismatic cell isolated using plastic separators, PE/PET films, or sleeves

Moisture & static protection:

Anti-static bags with desiccant for long-distance or sea transport

Surface protection:

Protective films applied to aluminum shell to avoid scratches and corrosion
