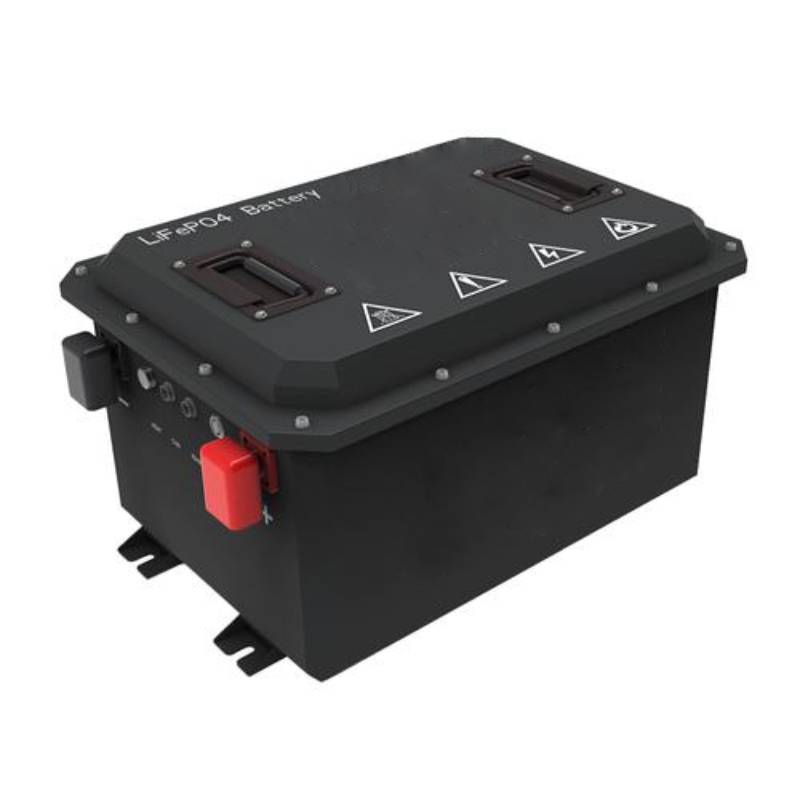

25,6 В 230 А·ч LiFePo4 аккумулятор для электрического Электрический ножничный подъемник

Technical Specifications

Battery type:LiFePo4 battery

Nominal voltage:25.6V

Nominal capacity:230 Ah

Stored energy:5888Wh

Overcharge protection voltage:29.2V

Discharge cut-off voltage:20V

Peak discharge current:350A(10s)

Maximum continuous discharge current:200A

Cycle life:@25±5℃, ≥3000 cycles, 0.5℃ charge/0.5℃ discharge

Dimensions :625*360*250mm

Standard case weight:50±2kg

Ingress protection:IP67

Vehicle communication mode:CAN

Charging temp:-20℃ to 55℃

Discharging temp:-20℃ to 60℃

Optional features: logo, heating function, counterweight block, others

Application vehicle:12-14 meter Scissor lift aerial work platform

Customized service

Custom voltage, capacity, and energy based on duty cycle and machine type.

Battery dimensions shaped to fit unique battery trays or compartments.

BMS with remote monitoring (4G/Bluetooth)

Self-heating for low-temperature use
IP65/IP67 rated enclosures for dust/water protection

Custom labels & branding
