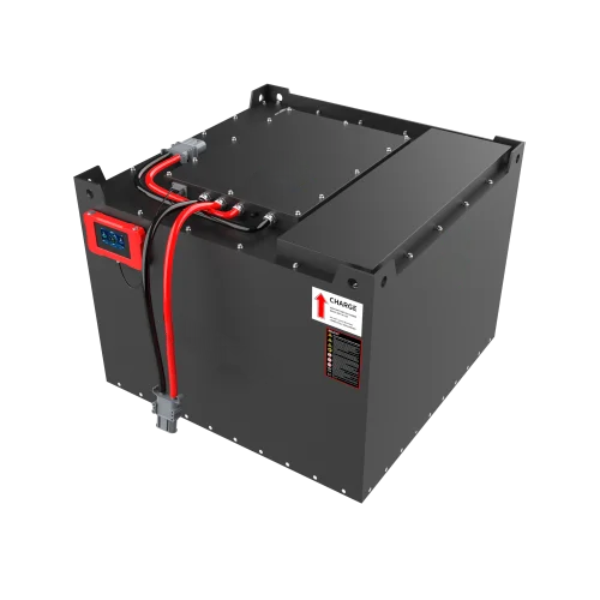

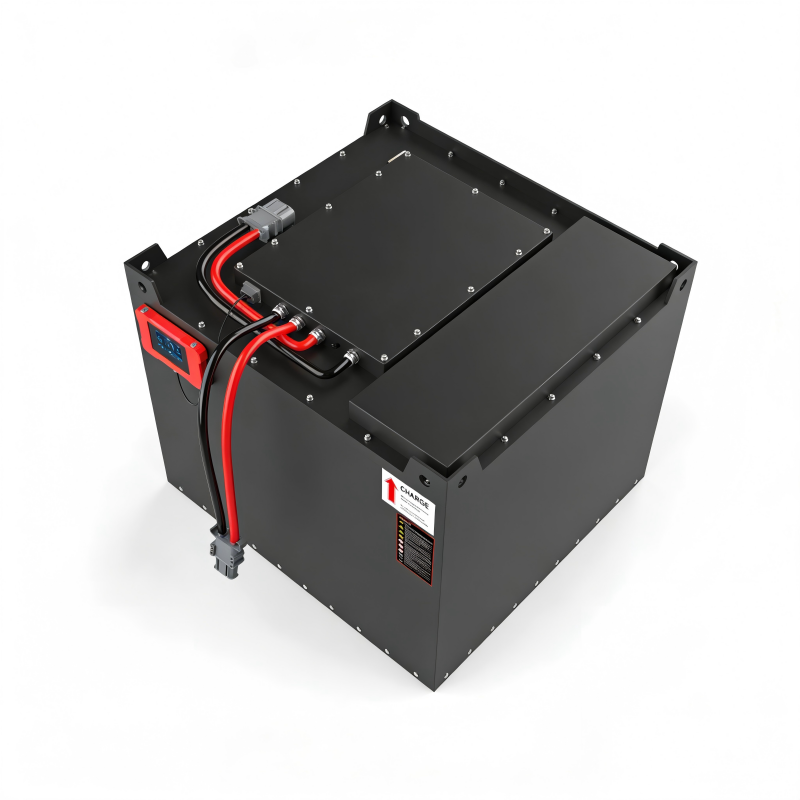

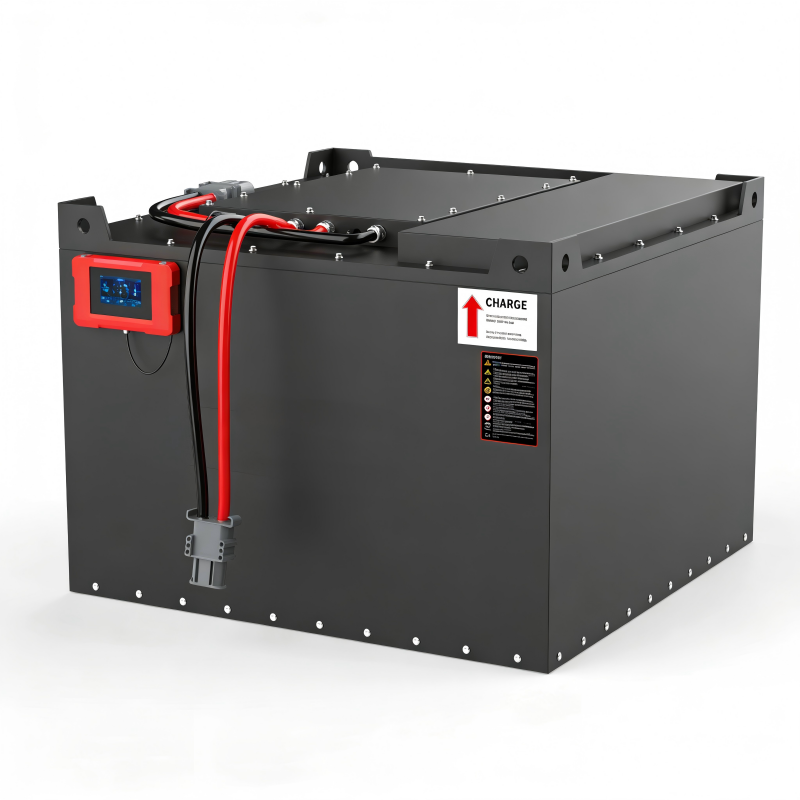

LiFePO4 80V 560Ah 44.8kWh Electric Forklift Battery IP65 Multiple Protections Maintenance Free

Technical Specifications

Nominal voltage:80V

Nominal capacity:560Ah

Stored energy:44.8kWh

Self-discharge:<3% per month

Design life:>10 years

Cycle life:>3500 cycles

Group mode:2P5S*5

Dimensions (LxWxH):support  customized

Weight:515.81kg

Ingress protection:IP65

Lead acid model (BCI number):48-85-15

Display:magnetic touch display

Vehicle communication mode:CAN

Display communication method:RS485

Charging temp:0℃  ~ 50℃

Discharging temp:-20℃  ~ 55℃

Storage temp:0℃   to ~40℃

Quality Control & Testing

Capacity, cycle life, and aging tests

Safety tests: overcharge, short circuit, thermal stability

Compliance with UN38.3, IEC, CE, UL and other international standards

Battery System Design & Engineering

Battery pack structural design for forklifts

Integration of intelligent BMS (Battery Management System)

Optimization for fast charging, opportunity charging, and long cycle life
