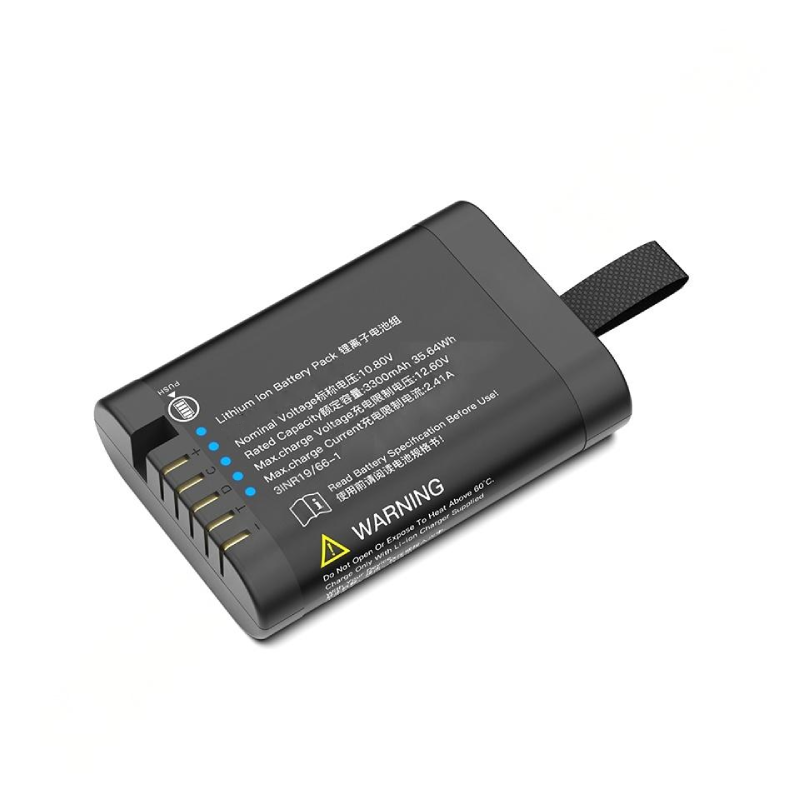

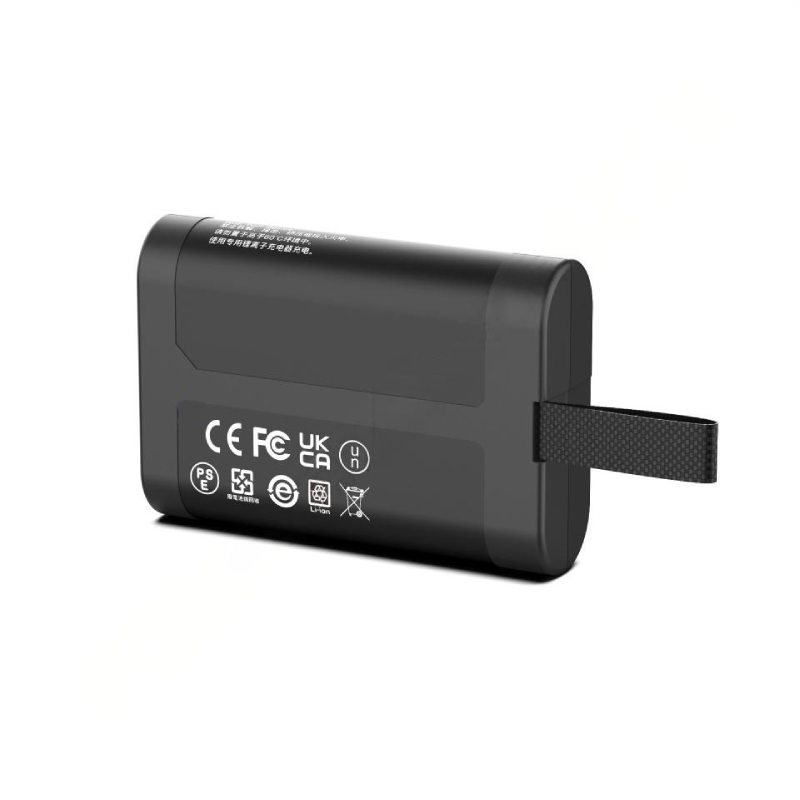

Medical Device Battery 10.8V 3300mAh Lithium Battery Pack Standard SMBus interface

Product Specifications

Rated Capacity: 3300mAh

Rated Voltage: 10.8V

Energy:35.64Wh

Battery type:lithium ion

Internal resistance: < 300mΩ @1kHz at 25℃

Maximum charging current: 2.41A

Maximum charging voltage: 12.6V（recommend）

Maximum discharging current: 4.0A

Cycle life: 500 cycles ≥ 80% capacity

(Test standard: CC/CV charge: 1.65A/12.6V; CC discharge:0.66A to 7.5V@25℃ )

Product Dimensions : 85.4±0.3*58.5±0.3*22.0±0.3mm

Weight: 175g±10g

Charging Temperature Range: 0~50°C

Discharge Temperature Range: -20~60°C

Features

Complies with regulations in multiple regions worldwide;

High energy density and stability using branded batteries;

Standard SMBus V1.1 interface;

Comprehensive safety protection features;

Tl accurate power calculation.
